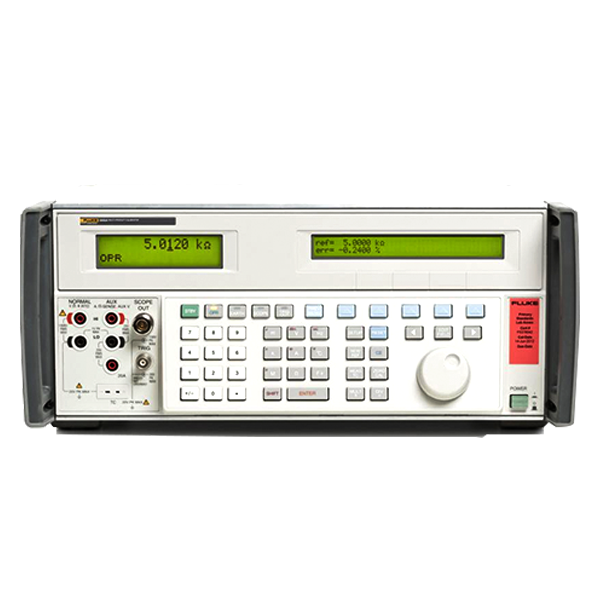

Model: 5502A Multi-Product Calibrator
Fluke 5502A is A full-functioned calibrator that covers a wide range of common workloads. The 5502A Multi-Product Calibrator addresses common workload items like 3.5 and 4.5-digit digital multimeters and more.
The Fluke 5502A comes with internal and external protection features that enable you to transport it easily and perform on-site or mobile calibration. The 5502A can also be fully automated with MET/CAL® Plus Calibration Management Software. It is the ideal calibrator for metrology professionals who need a solution for calibrating low-to-medium accuracy electrical instrumentation.
Fluke Calibration offers extensive calibration support and service to ensure your long-term satisfaction and return on investment in calibration equipment. Our worldwide network of calibration centers offers accredited calibrations traceable to national standards. We also offer fast, quality repair and calibration services, including a module exchange program and full support in setting up your lab. Explore the Fluke 5502A Multi-Product Calibrator Rent in Bangladesh offers versatile, high-accuracy calibration for electrical test equipment at a cost-effective rental.
Key Features: Fluke 5502A Multi-Product Calibrator
- Calibrates a wide variety of electrical test equipment
- Robust protection circuits prevent costly damage from operator error
- Ergonomically designed carrying handles make the 5502A easy to transport
- Remarkably affordable
- The current output that extends to 120 A when paired with the 52120A Transconductance Amplifier
- Rugged carrying case with built-in handles and wheels and removable front/rear access doors for in-situ calibration in almost any environment
Specification: 5502A Multi-Product Calibrator
Summary Specifications |
|
| Function & range | |
| Direct volts | 0 to ± 1020 V |
| Direct current | 0 to 20.5 A |
| Alternating volts | 1 mV to 1020 V 10 Hz to 500 kHz |
| Volt*Hertz | 1000 V@ 10 kHz/330 V@100 kHz |
| Alternating current | 29 μA to 20.5 A 10 Hz to 30 kHz |
| Waveforms | Sine, square, triangle, truncated sine |
| Resistance | 0 Ω to 1100 MΩ |
| Capacitance | 220 pF to 110 mF |
| Power (phantom loads) | 20.9 kW |
| Phase control | 0.01° |
| Thermocouple (source and measure temperature) | B, C, E, J, K L N R, S, T, U 10 μV/°C and 1 mV/degC |
| RTD (source temperature) | Pt 385-100 Ω, Pt 3926-100 Ω Pt 3916-100 Ω, Pt 385-200 Ω, Pt 385-500 Ω, Pt385 1000 Ω, PtNi 385-120 Ω, (Ni120), Cu 427 10 Ω |
| Interfaces | RS-232, IEEE 488 |
| Frequency uncertainty | <25 ppm |
| Calibration Documentation | 17025 accredited report of calibration included |
| Oscilloscope calibrator (optional) | Levelled sine wave from 5 mV to 5.5 Vpp max, frequencies 50 kHz to 600 kHz; edge rise times of < 300 ps, multiple trigger functions, lowest dc, square wave and timing uncertainty |
| Current boost transconductance amplifier | 0 to 100 A dc, 0 to 120 A ac, dc to 10 kHz, up to 6000 A with accessory current coils |
