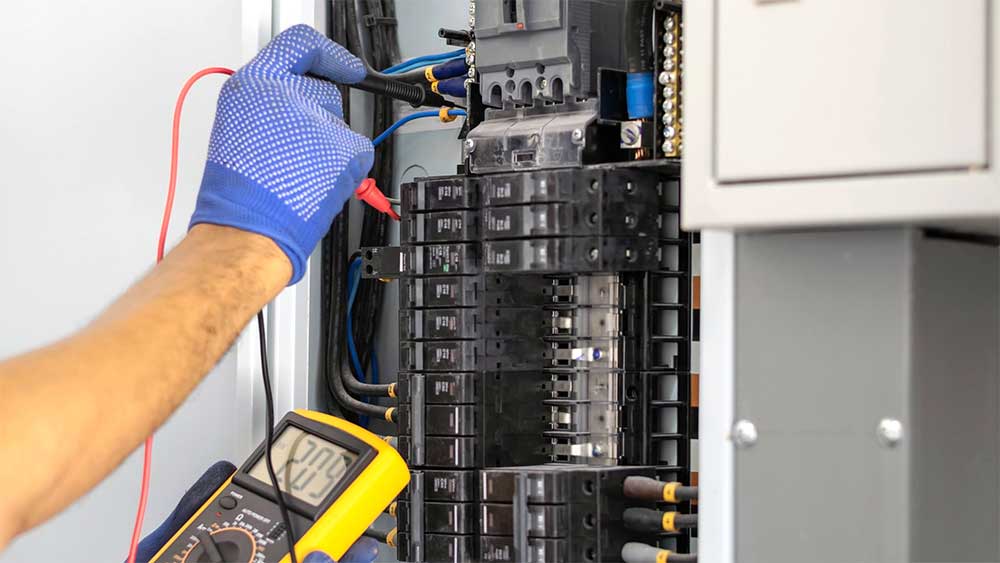

Circuit Breaker Test

Circuit Breaker Test in Bangladesh

Electrical systems form the backbone of industries, businesses, and homes. Any fault in these systems can result in catastrophic outcomes such as fire hazards, equipment damage, or complete power failure. One of the most critical components that ensure electrical safety is the circuit breaker. At Pico Labs Ltd, we specialize in Circuit Breaker Test in Bangladesh, providing precision testing services to guarantee optimal performance and reliability.

What is a Circuit Breaker?

A circuit breaker is an automatic electrical switch designed to protect an electrical circuit from damage caused by overload or short circuits. Unlike a fuse, which needs replacement after a fault, a circuit breaker can be reset, either manually or automatically, to resume normal operation.

Circuit breakers are widely used in industrial, commercial, and residential settings to protect electrical equipment and ensure the safety of personnel. Their importance in preventing electrical hazards cannot be overstated.

Why Circuit Breaker Testing is Important

Over time, circuit breakers may lose their efficiency due to wear and tear, environmental factors, or mechanical fatigue. Regular circuit breaker testing is essential for several reasons:

1. Safety Assurance: Testing ensures that the circuit breaker trips under fault conditions, protecting equipment and lives.

2. Compliance with Standards: Industrial and commercial electrical installations must meet local and international safety standards. Testing ensures compliance.

3. Reliability of Power Systems: A malfunctioning circuit breaker can disrupt operations, leading to downtime and financial losses.

4. Early Fault Detection: Testing can identify hidden defects such as contact wear, insulation failure, or mechanical issues before they escalate.

By conducting Circuit Breaker Test in Bangladesh, industries can minimize risks and maintain uninterrupted electrical operations.

Types of Circuit Breaker Tests

There are several testing methods, each designed to evaluate different aspects of a circuit breaker’s performance. These include:

1. Mechanical Operation Test

This test examines the physical operation of the circuit breaker, including its opening and closing mechanisms. It helps identify mechanical wear, spring tension issues, and alignment problems. Proper mechanical functioning is crucial to ensure that the circuit breaker can respond quickly during faults.

2. Timing Test

The timing test measures the response time of the circuit breaker when subjected to electrical faults. Accurate timing ensures that the breaker trips within the designated time frame, preventing damage to the connected system. This test is particularly important in high-voltage applications where delays can be costly.

3. Contact Resistance Test

High contact resistance can lead to overheating and energy loss. This test measures the resistance across the breaker contacts to detect any abnormalities. Regular contact resistance testing is vital for maintaining the efficiency of electrical systems.

4. Insulation Resistance Test

Insulation testing ensures that the circuit breaker’s internal components are properly insulated, preventing leakage currents and short circuits. This test is performed using specialized equipment and is critical for both low-voltage and high-voltage breakers.

5. Overcurrent Test

This test verifies the breaker’s ability to trip when an overcurrent condition occurs. It simulates different fault conditions to ensure the breaker operates as expected. This type of test is fundamental to ensuring safety in industrial environments.

6. High-Pot Test (Dielectric Test)

The high-potential test applies a high voltage to the breaker to check the integrity of its insulation. This test helps identify insulation weaknesses that could lead to breakdowns under normal operating conditions.

How Pico Labs Ltd Performs Circuit Breaker Testing

At Pico Labs Ltd, we follow a systematic approach to Circuit Breaker Test in Bangladesh, ensuring accurate and reliable results:

1. Initial Inspection: Our technicians visually inspect the breaker for signs of wear, corrosion, or mechanical damage.

2. Test Planning: We select the appropriate testing procedures based on the breaker type (air, vacuum, oil, or SF6).

3. Testing Execution: Using advanced testing equipment, we conduct mechanical, electrical, and insulation tests.

4. Data Analysis: Test results are analyzed to identify potential issues and determine if maintenance or replacement is required.

5. Reporting & Recommendations: A detailed report is provided, highlighting findings, recommendations, and preventive measures.

Our testing services comply with international standards such as IEC, IEEE, and ANSI, ensuring that your electrical systems operate safely and efficiently.

Benefits of Professional Circuit Breaker Testing

Engaging a professional service like Pico Labs Ltd offers multiple advantages:

• Enhanced Safety: Reduces the risk of electrical accidents.

• Extended Equipment Life: Timely detection of issues prevents major failures.

• Cost Savings: Prevents downtime and expensive repairs.

• Regulatory Compliance: Helps meet legal and industry requirements.

• Peace of Mind: Assurance that your electrical system is reliable and safe.

Common Issues Detected During Circuit Breaker Tests

Professional testing can detect various issues that might go unnoticed in routine inspections:

• Worn contacts or pitted surfaces

• Improper tripping times

• Weak or broken springs

• Insulation breakdown

• Corrosion or dust accumulation

• Electrical arcing or overheating

Addressing these issues promptly can prevent larger failures and ensure continuous operation.

Industries That Benefit from Circuit Breaker Testing

Circuit breakers are critical in all sectors, but certain industries particularly benefit from regular testing:

• Power Generation & Distribution: Ensures uninterrupted electricity supply.

• Manufacturing & Industrial Plants: Protects heavy machinery and production lines.

• Commercial Buildings: Safeguards offices, hospitals, and malls from electrical faults.

• Residential Complexes: Ensures home electrical systems remain safe.

• Renewable Energy Projects: Protects solar, wind, and hybrid energy installations.

By providing Circuit Breaker Test in Bangladesh, Pico Labs Ltd supports these sectors in maintaining safe and efficient electrical operations.

Why Choose Pico Labs Ltd for Circuit Breaker Testing?

Choosing the right partner for electrical testing is crucial. Pico Labs Ltd stands out due to:

• Experienced Technicians: Skilled professionals trained in advanced testing methods.

• State-of-the-Art Equipment: Cutting-edge tools for precise and accurate testing.

• Comprehensive Services: From inspection to testing, analysis, and reporting.

• Customer-Focused Approach: Tailored solutions for industrial, commercial, and residential clients.

• Timely Service: Efficient testing to minimize downtime and disruption.

We are committed to providing the highest quality Circuit Breaker Test in Bangladesh, ensuring the safety, reliability, and efficiency of your electrical systems.

Circuit breakers are the unsung heroes of electrical safety, preventing damage, injuries, and potential disasters. Regular Circuit Breaker Test in Bangladesh is essential for industries, businesses, and homes to maintain uninterrupted and safe power supply. With Pico Labs Ltd, you gain a trusted partner in electrical equipment calibration and testing, dedicated to ensuring your systems operate at peak performance.
