Annual Inspection Service is an important activity in Bangladesh that is used to ensure the safety, quality, and efficiency of various institutions, industries, and factories. This service usually focuses on electrical, mechanical, and building safety systems, which the relevant authorities or experts inspect regularly. Through the annual inspection service, institutions can ensure the correctness and safety of their activities quickly identify any potential risks or defects. This service is common in various government and private sectors in Bangladesh, which plays an important role in industrial development and protecting the safety of the people.

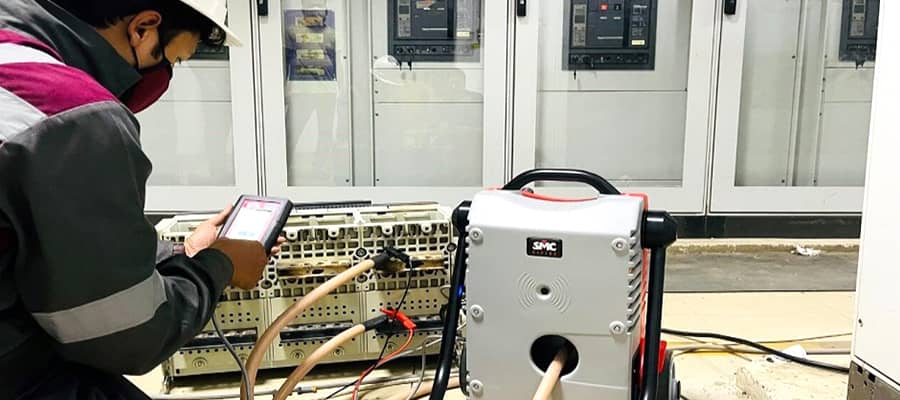

Annual Inspection
Field of Test | Required Equipment |
Transformer Test | Insulation Resistance Tester Range: 50V to 15000 V |
Insulation Resistance Tester Range: 50V to 15000 V |
|
Insulation Resistance Tester Range: 50V to 15000 V |
|
Primary Current Injector Range: Up to 15000 A |
|
Contact Resistance Tester Range: 0 Micro-ohm to 1999.9 Ω Test Current: 1 mA to 200 A |
|
Thermal Imager Range: ≤-20 °C to 1000 °C |
|
Earth Ground Tester Range: 0.025 Ω to 1500 Ω |
|
Circuit Breaker Test (VCB) | Insulation Resistance Tester Range: 50V to 15000 V |
Resistance: 0 μΩ to 1999.9 Ω Test Current: Up to 200 A |
|
Insulation Resistance Tester Range: 50V to 15000 V |
|
N/A | |
Circuit Breaker Test (ACB) | Insulation Resistance Tester Range: 50V to 15000 V |
Primary Current Injector Range: Up to 15000 A |
|
Primary Current Injector Range: Up to 15000 A |
|
Resistance: 0 μΩ to 1999.9 Ω Test Current: Up to 200 A |
|
N/A | |
Circuit Breaker Test (DB/MDB/SB)-MCCB | Insulation Resistance Tester Range: 50V to 15000 V |
Resistance: 0 μΩ to 1999.9 Ω Test Current: Up to 200 A |
|
Primary Current Injector Range: Up to 15000 A |
|
Primary Current Injector Range: Up to 15000 A |
|
Primary Current Injector Range: Up to 15000 A |
|
Temperature: -20°C to 60°C Humidity: 5% to 95% RH |
|
N/A | |
ATS | Insulation Resistance Tester Range: 50V to 15000 V |
Insulation Resistance Tester Range: 50V to 15000 V |
|
Change Over Switch (COS) | Insulation Resistance Tester Range: 50V to 15000 V |
Primary Current Injector Range: Up to 15000 A |
|
Primary Current Injector Range: Up to 15000 A |
|
Resistance: 0 μΩ to 1999.9 Ω Test Current: Up to 200 A |
|
N/A | |
Power Factor Improvement System Testing | Insulation Resistance Tester Range: 50V to 15000 V |
Primary Current Injector Range: Up to 15000 A |
|
Primary Current Injector Range: Up to 15000 A |
|
Resistance: 0 μΩ to 1999.9 Ω Test Current: Up to 200 A |
|
N/A |
